Core-Sampling Drill

An off-the-shelf drill turned into a precision soil core sampler: regulated speed, 50% more torque, ten units delivered.

GeotechnicalConsumer Electronics

+50%: torque over stock
10: prototype units delivered with an assembly manual

Fig · Core-sampling drill Testbed · torque benchmarkSIM

Drill · compare stock / tuned

ESC

Ready

An off-the-shelf drill rebuilt as a soil core sampler. Its speed controller moved out of the grip into a finned aluminium enclosure, where it can run a higher current limit; with the FOC and MTPA parameters tuned, peak torque rose 50% over stock. The firmware now holds a set speed while the load changes from stratum to stratum. Every other value here, from the curve shapes to the rpm, N·m and depths, is simulated (SIM) for illustration.

Interactive figure (needs JavaScript): an isometric drawing of the altered drill on a stand, coring a soil column cut away to show four strata, beside a torque–speed plot. The relocated, heatsinked controller runs a higher current limit and tuned FOC/MTPA parameters, giving 50% more maximum torque than stock.

Challenge

Convert an off-the-shelf drill into a precision soil core sampler with regulated speed control and higher maximum torque.

Approach

We selected the best stock model, documented a step-by-step teardown, and modified the casing to fit new parts. Harnesses moved to heavier-gauge wire with modular connectors for higher current and easy reassembly, and we reprogrammed the motor velocity curve. A custom testbed benchmarked speed and torque performance.

Highlights

Relocating the speed controller to an external aluminum heatsink enclosure raised its current limit, and with it the motor’s torque limit.
Tuning the controller’s field-oriented control (FOC) and maximum-torque-per-amp (MTPA) parameters raised stock torque by 50%.
Delivered a batch of ten prototypes with an assembly manual, including fabrication illustrations and wiring diagrams.

From the bench

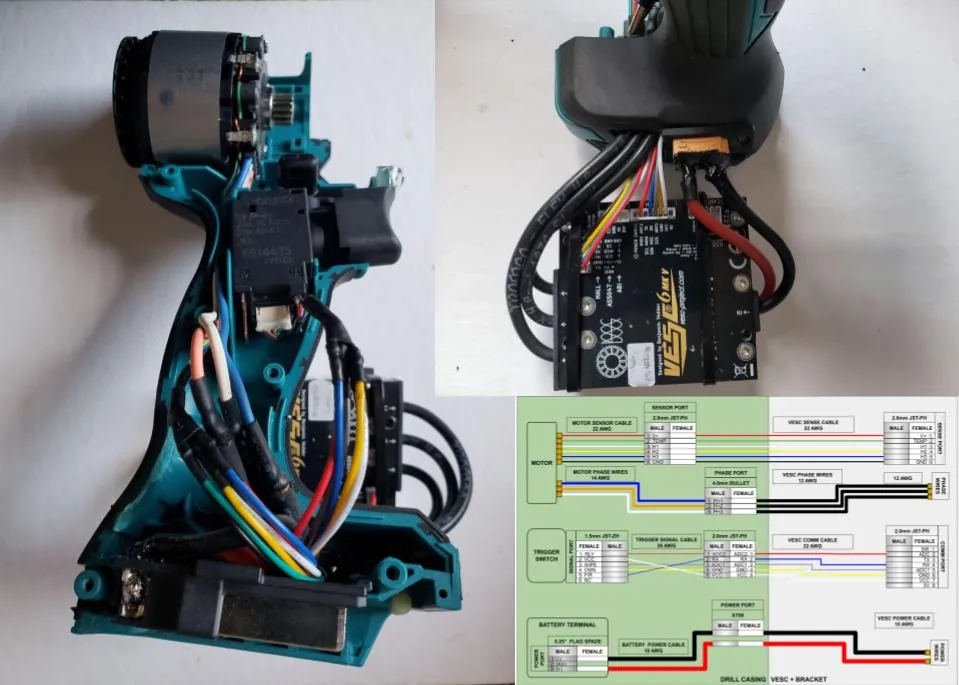

Montage: an opened drill housing with a rewired harness, an external motor controller mounted below the grip, and the harness wiring diagram.
